THE CONNEX PRINCIPLE

Our spring bushings provide the manufacturing precision and high quality material that modern engineers require. The CONNEX Principle, by virtue of its unique design, produces a high surface bearing pressure against the housing wall which results in a high seating capacity comparable to that of a solid bushing.

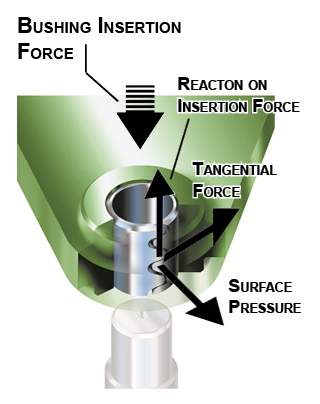

In the CONNEX Principle, the teeth in the seam are offset by a certian measure. In the relaxed state, the bushing is oversized to the housing bore. However, upon insertion into the holding bore, the compression of the bushing allows the teeth to make contact on one side along the plane of the seam. The perspective drawing shows that the installed bushing has an operative radial and tangenitial force. As a result, there is high contact pressure between the bushing and housing. The higher the ratio between the bushing wall thickness and diameter, the more active is the CONNEX Principle.







The following index is a complete presentation of the technical and practical aspects of CONNEX bushings. We welcome your inquiry.

Application of Connex® Spring Bushings

Properties of the Connex® Spring Bushings

Seating Capacity/Insertion Force

Bearing Load Calculations for Connex® Spring Bushings

Connex® Spring Bushings Form 1...cold rolled with finished ends- Material: AISI 6150

Connex® Spring Bushings Special Options

The Quality Assurance System
