Spring Pins

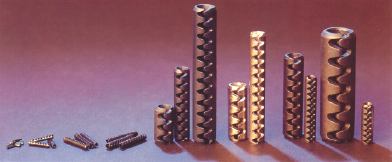

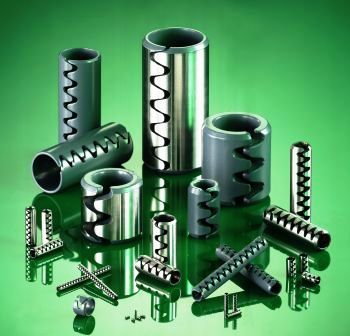

CONNEX Spring Pins precisely position the cast parts of hydraulic rotor pumps. Relatively long pin bores increase diameter tolerances, and that cuts costs. No axial travel assures precise position, and pins actually seat better over time. Plus, CONNEX spring pins are much easier to handle during asembly than solid pins.

Tangential force is the key

The combination of the radial-acting spring force and the tangential force produced by the toothed slot increases the contact pressure between the pin bore and the pin. And that pressure is why you buy a spring pin.

Improved seating capacity

The axial tension produced by staggered teeth allows larger tolerance in the bore for cost-saving manufacturing and assembly. Designed for heavy loads, vibration-resistant CONNEX Spring Pins deliver uniform shear strength in all directions- unlike straight slotted pins.

Designed and manufactured for the most demanding applications

Close tolerances	High quality spring steel
On customer request	Chrome-vanadium steel-AISI 6150
Ground OD option adds even more precision	Corrosion-resistant stainless steel available (Metric sizes only)
Higher seating capacity	Higher resistance to wear and tear
Resists vibration	Manufactured in ISO 9002 facility
Easier to assemble and remove
Ideal for automatic feed
Save on lower-tolerance bores

CONNEX Spring Pins improve seating capacity up to 80%!

The Connex® Principle

Spring Pins - Standard and Ground

Spring Pin Properties

Shear Resistance and Material Strength

Heavy Spring Pins (Inch Sizes), Type S

Ground Heavy Spring Pins (Inch Sizes), Type SG

Heavy Spring Pins (Metric Sizes), Type S

Examples of Applications Using Connex® Spring Pins
